Description
Features
- Made from premium stress-relieved conical ovate wire
- Features extremely high-level of fatigue life
- Uses a much smaller and lighter weight retainer to reduce valve weight and create quicker rev and smoother motion
- Designed to handle the demands of performance engines with 0.585" and smaller lift camshafts

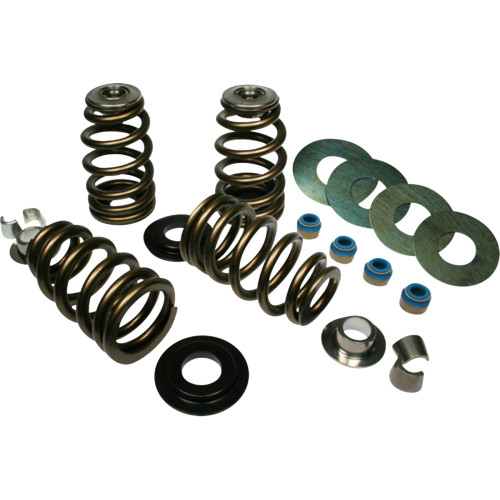

- Kit includes: Econo BeeHive® valve springs, lightweight 7° steel retainers, machined heat-treated chromoly spring seats, seat shims, valve locks and a set of premium Viton® valve seals equipped with spring-loaded valve stem wiper system
- Seat lb/installed height; 183 lb at 1.770" (0.510" lift)
- 175 lb at 1.795" (0.535" lift)
- 172 lb at 1.813" (0.553" lift)
- 165 lb at 1.835" (0.574" lift)
- 160 lb at 1.845" (0.585" lift)
- 380 lb at 1.260" open height coil bind at 1.190"
- Dyno proven and track tested
- Feuling® BeeHive® valve springs must be installed at the correct open height, matching max lift to the open height spec of the valve springs
- Made in the USA
| Position | Notes | |||
|---|---|---|---|---|
| 2014-2017 | Harley-Davidson | XL1200T SuperLow 1200T | - | - |
| 2012-2016 | Harley-Davidson | XL1200V Seventy-Two | - | - |
| 2004-2019 | Harley-Davidson | XL1200C Sportster 1200 Custom | - | - |
| 2006-2011 | Harley-Davidson | XL1200L Sportster 1200 Low | - | - |
| 2005-2010 | Harley-Davidson | XL883L Sportster 883 Low | - | - |
| 2011-2019 | Harley-Davidson | XL883L SuperLow | - | - |
| 2005-2006 | Harley-Davidson | 883 Roadster EFI XLR | - | - |
| 2010-2020 | Harley-Davidson | XL1200X Forty-Eight | - | - |
| 2009-2020 | Harley-Davidson | XL883N Iron 883 | - | - |
| 2007-2012 | Harley-Davidson | XL1200N Sportster 1200 Nightster | - | - |
| 2004-2006 | Harley-Davidson | 883 Custom EFI XLC | - | - |
| 2004-2009 | Harley-Davidson | XL1200R Sportster 1200 Roadster | - | - |
| 2011-2017 | Harley-Davidson | 1200 XLCP | - | - |
| 2016-2020 | Harley-Davidson | XL1200CX Roadster | - | - |
| 2009 | Harley-Davidson | 883 EFI XL | - | - |
| 2018-2019 | Harley-Davidson | XL1200XS Forty-Eight Special | - | - |
| 2006 | Harley-Davidson | 1200 Roadster EFI XLR | - | - |
| 2006 | Harley-Davidson | 883 Low EFI XLL | - | - |
| 2004-2009 | Harley-Davidson | XL883C Sportster 883 Custom | - | - |
| 2005-2007 | Harley-Davidson | XL883R Sportster 883 Roadster | - | - |
| 2018-2020 | Harley-Davidson | XL1200NS Iron 1200 | - | - |
| 2006 | Harley-Davidson | 1200 Low EFI XLL | - | - |
| 2004-2008 | Harley-Davidson | XL883 Sportster | - | - |
| 2010-2012 | Harley-Davidson | XR1200X | - | - |
| 2007 | Harley-Davidson | XL50 50th Anniversary Sportster | - | - |
| 2004-2006 | Harley-Davidson | 1200 Custom EFI XLC | - | - |
| 2010 | Harley-Davidson | XR1200 | - | - |
| 2007 | Harley-Davidson | 883 Roadster XLR | - | - |
| 2011-2012 | Harley-Davidson | Sportster 1200 XR | - | - |
| 2009 | Harley-Davidson | Sportster 1200 X XR | - | - |
